NES E36 Brake booster delete kit – 6:1 pedal ratio
This kit lets you remove the brake booster on your BMW E36 while retaining the original master cylinder. It changes the pedal ratio from approximately 3:1 to 6:1 for a manual brake setup.

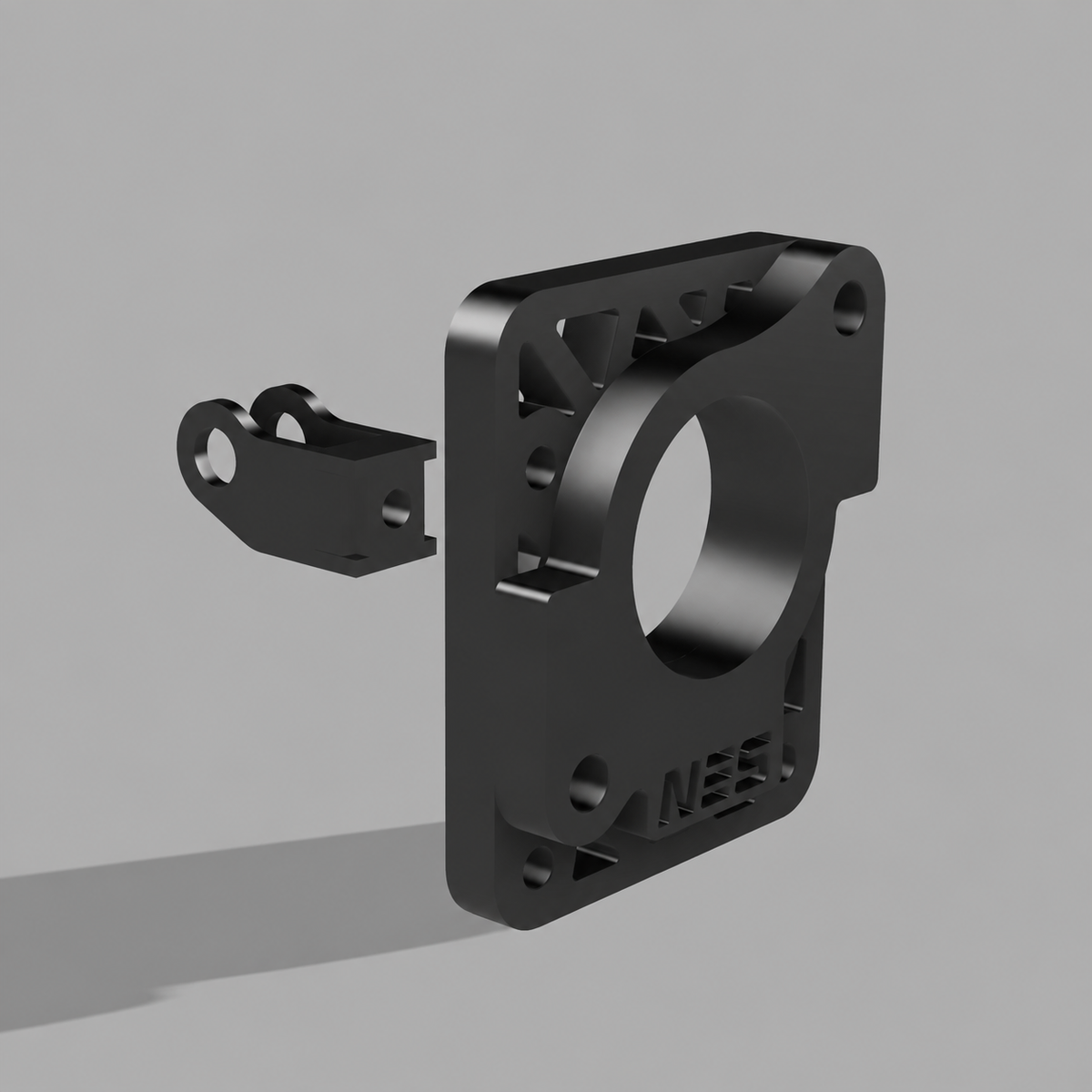

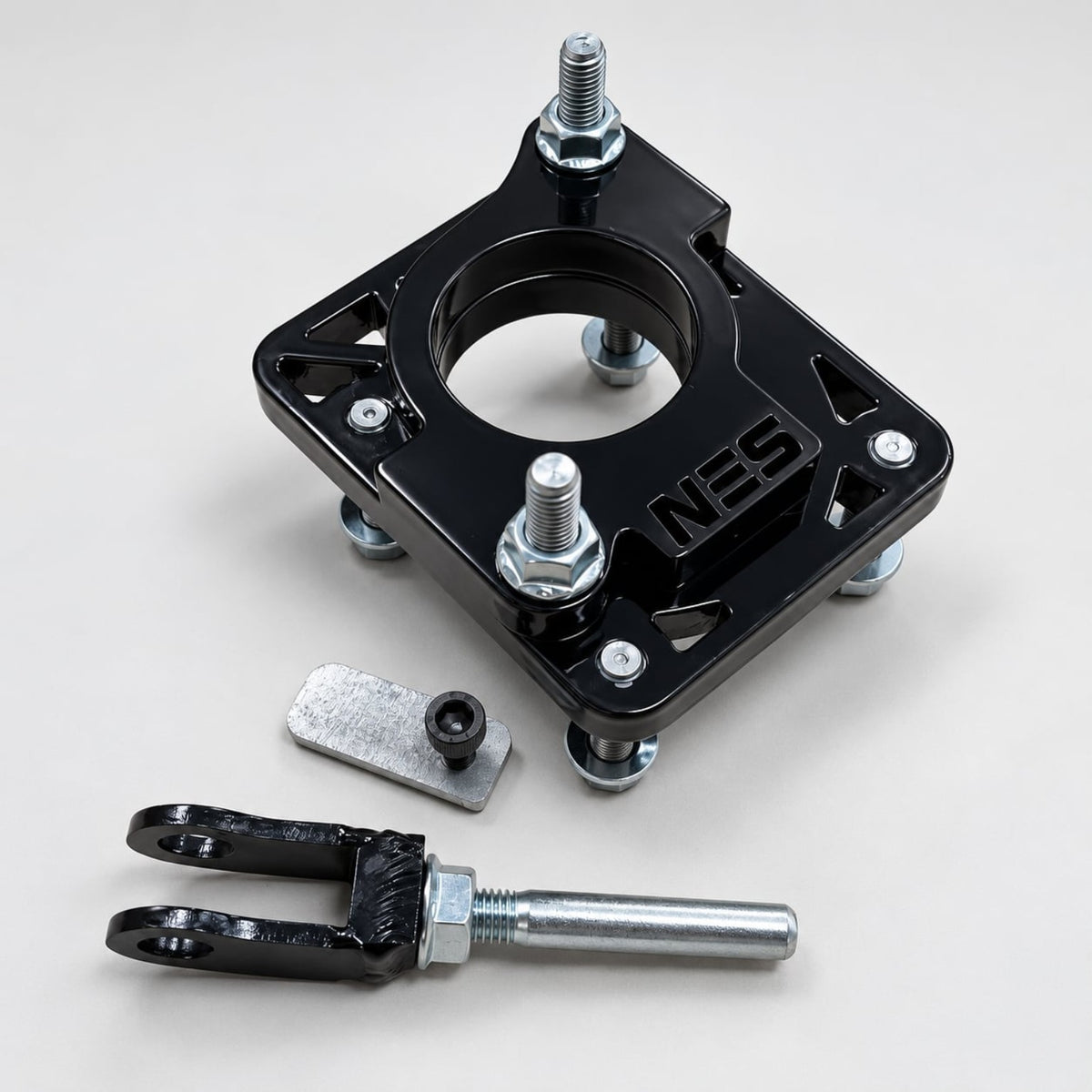

The version 2 design uses a lighter steel bracket with a jet-black powder-coated finish and an updated pedal fork. Supplied studs mount the bracket through the factory firewall bolt holes.
- Fits left-hand-drive BMW E36.
- Retains the stock E36 master cylinder.
- Approximately 6:1 pedal ratio.
- Steel construction with a black powder-coated finish.
Installation: Requires approximately 2 mm of clearance grinding at the top of the large opening in both the firewall and original pedal box, plus a new hole drilled in the brake pedal. Further fitting and adjustment are required.
For racing use only. Brake servo assistance is removed.
Motorsport Use Only
This product is designed and intended for motorsport, competition, and off-road/track use only. It is not designed, tested, or approved for use on public roads.
The customer is responsible for ensuring that the installation and use of this product comply with all applicable local laws and regulations. Professional installation is recommended.
